Product Details
＋

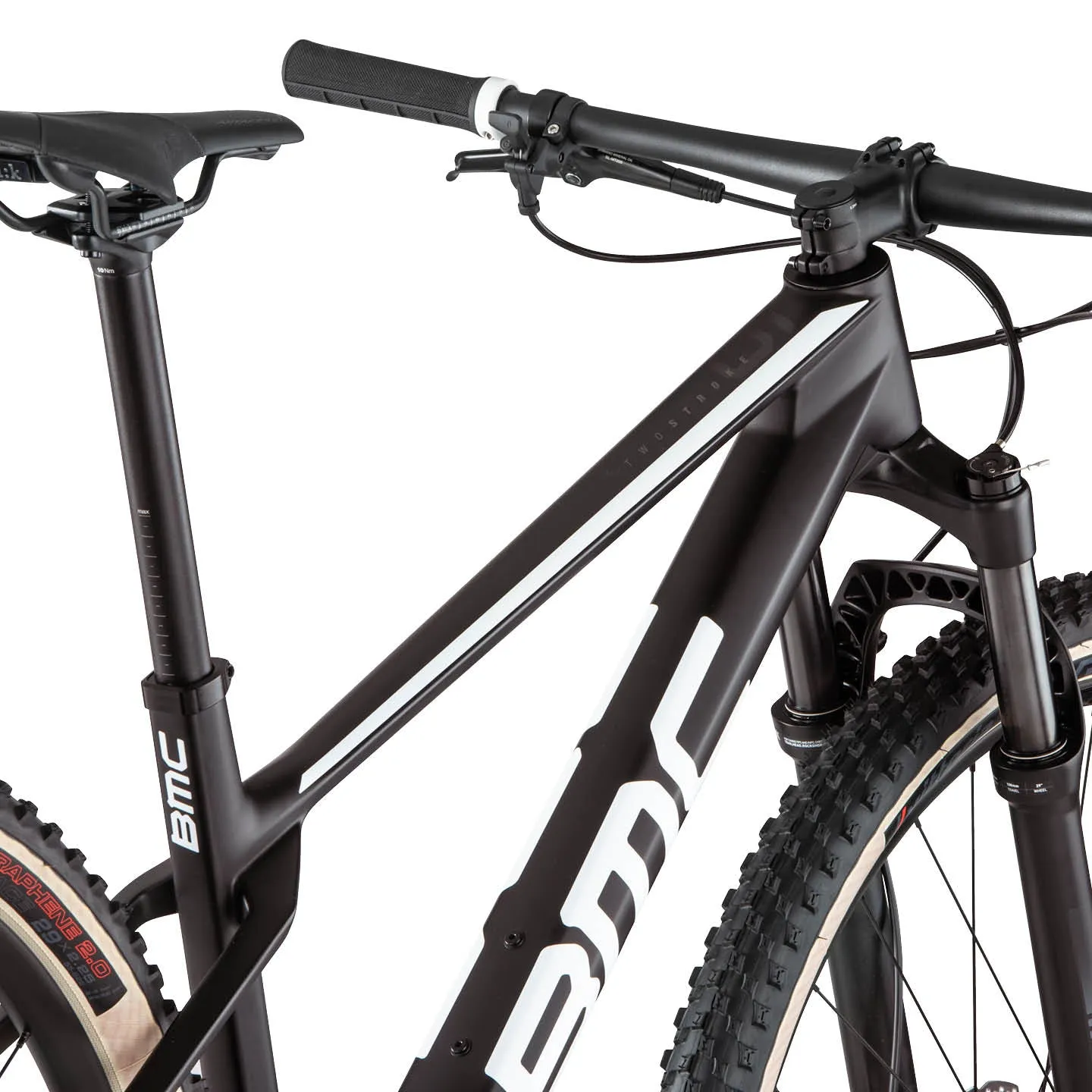

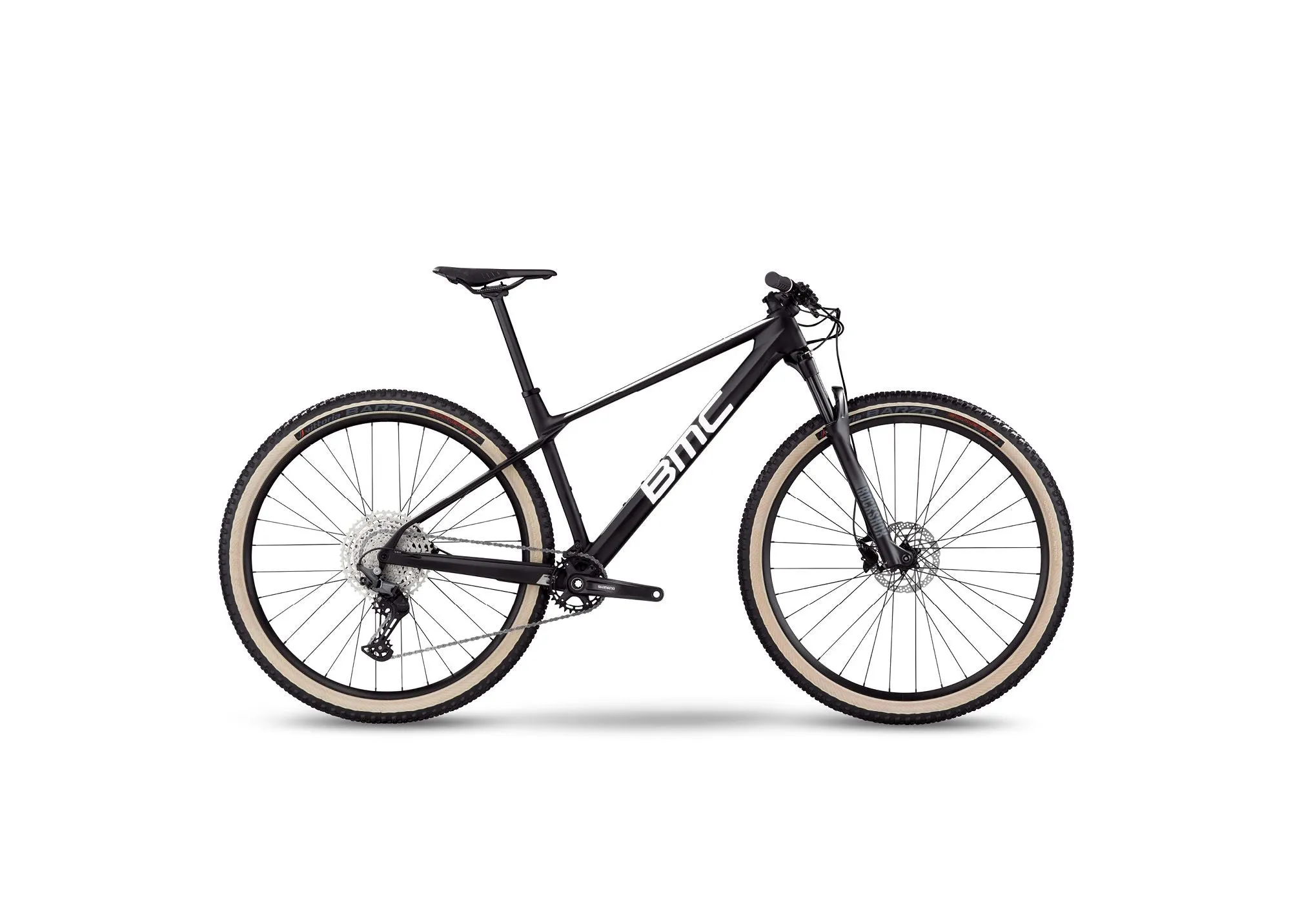

The Twostroke 01 is a progressive, compliant and confidence-inspiring fast hardtail. Its TCC-designed carbon frame has radical geometry for steep and loose terrain, wide tire clearance, integrated fork stopper and frame protection, plus internal cabling and provision for a dropper post. A RockShox Judy TK R fork, alloy bar, 12-speed Shimano Deore drivetrain with MT200 brakes and SHL280S wheels equip this introduction to the carbon Twostroke.
Technical Overview
Frame
Twostroke 01 Premium Carbon with Tuned Compliance Concept XC
Fully Guided Internal Cable Routing
PF92 Bottom Bracket
Post Mount Disc
12x148mm Boost Thru-AxleFork
Rockshox Judy Silver TK - PopLoc RemoteGears
1x12Chainwheel
SHIMANO FC-MT510-1 32TCassette
SHIMANO Deore CS-M6100 12 spd 10-51TChain
SHIMANO Deore CN-M6100 12 spdRear Derailleur
SHIMANO Deore RD-M6100 12 spdShifters
SHIMANO Deore SL-M6100 12 spdBrakes
SHIMANO BL-MT200 Levers. BR-MT200 Calipers | SHIMANO SM-RT30 (160/160 S-M - 180/160 L-XL)Handlebar
BMC MFB03 Alloy 750mmStem
Forged 6061 AlloySeatpost
BMC MSP03 - 27.2mm - 0mm Offset (D-Shaped Insert)Saddle
Fizik Antares R7Hubs
SHIMANO HB-MT400-B / FH-MT410-BRims
SHL28OS - 25mm Inner WidthTires
Vittoria Barzo 2.25"Tire Clearance
58mm (Measured Width)Weight Limit
110 KgASTM Classification
Level 3
| Size | S | M | L | XL |
|---|---|---|---|---|
| Rider Height CM | 162-172 | 170-180 | 178-188 | >188 |
| Stack MM | 588 | 598 | 608 | 623 |
| Reach MM (reach) | 422.5 | 445 | 465 | 485 |
| Seat Tube MM (st) | 410 | 440 | 480 | 510 |
| Top Tube MM (tt) | 597 | 618 | 638 | 658 |
| Head Tube MM (ht) | 87 | 93.5 | 106 | 122.5 |
| Seat Tube Angle (sa) | 75.0 | 75.0 | 75.0 | 75.0 |
| Head Angle (ha) | 67.0 | 67.0 | 67.0 | 67.0 |
| Rear Center MM (rc) | 425 | 425 | 425 | 425 |
| Front Center MM (fc) | 696 | 715 | 741 | 767 |
| Wheelbase MM (wb) | 1112.5 | 1135 | 1161 | 1185 |
| BB Drop MM (drop) | 64 | 64 | 64 | 64 |
| Fork Length MM (fl) | 505 | 505 | 505 | 505 |
| Fork Rake MM (fr) | 44 | 44 | 44 | 44 |
| Trail MM (trail) | 109 | 109 | 109 | 109 |
| Crank Length MM | 170 | 175 | 175 | 175 |
| Stem Length MM | 45 | 60 | 60 | 70 |
| Stem Angle | ±6 | ±6 | ±6 | ±6 |
| Bar Width MM | 750 | 750 | 750 | 750 |
| Bar Rise MM | 4 | 4 | 4 | 4 |
| Backsweep | 8 | 8 | 8 | 8 |
| Standover Height mm | 725 | 730 | 735 | 750 |
| Seatpost Length MM | 380 | 430 | 430 | 430 |

Frameset
- Twostroke 01 premium carbon with Tuned Compliance Concept Race
Technical Details
- Tuned Compliance Concept Race: hardtail-specific carbon layup dedicated to XC and XCM riding style
- D-Shape seatpost: lightweight and compliant
- Fully guided internal cable routing
- Integrated fork stopper
- Integrated chain guide
- Molded chainstay guard, chain suck protection plate, invisible downtube shield, lower link mud protector
- ASTM level 3
Sizes
S, M, L, XL
Frame Weight*
1037 g
Compatibility
Frame, Fork and Seatpost
- 1x drivetrain specific
- PF92 bottom bracket
- 52 mm boost chainline
- 27.2 mm dropper post with dedicated shim, stealth cable routing
- Replaceable standard or direct mount rear derailleur hangers
- 2x waterbottle mounts
Brakes
- Post mount, 160 mm
Wheels and Axles
- 29" x 58 mm tire clearance
- 12x148 mm boost rear axle
*Weight for the lightest finish, including complete hardware with size M frames
